Μπαταρίες οικιακής χρήσης

T-BAT-SYS-LV-R36

3,6 kWh-58,8 kWh

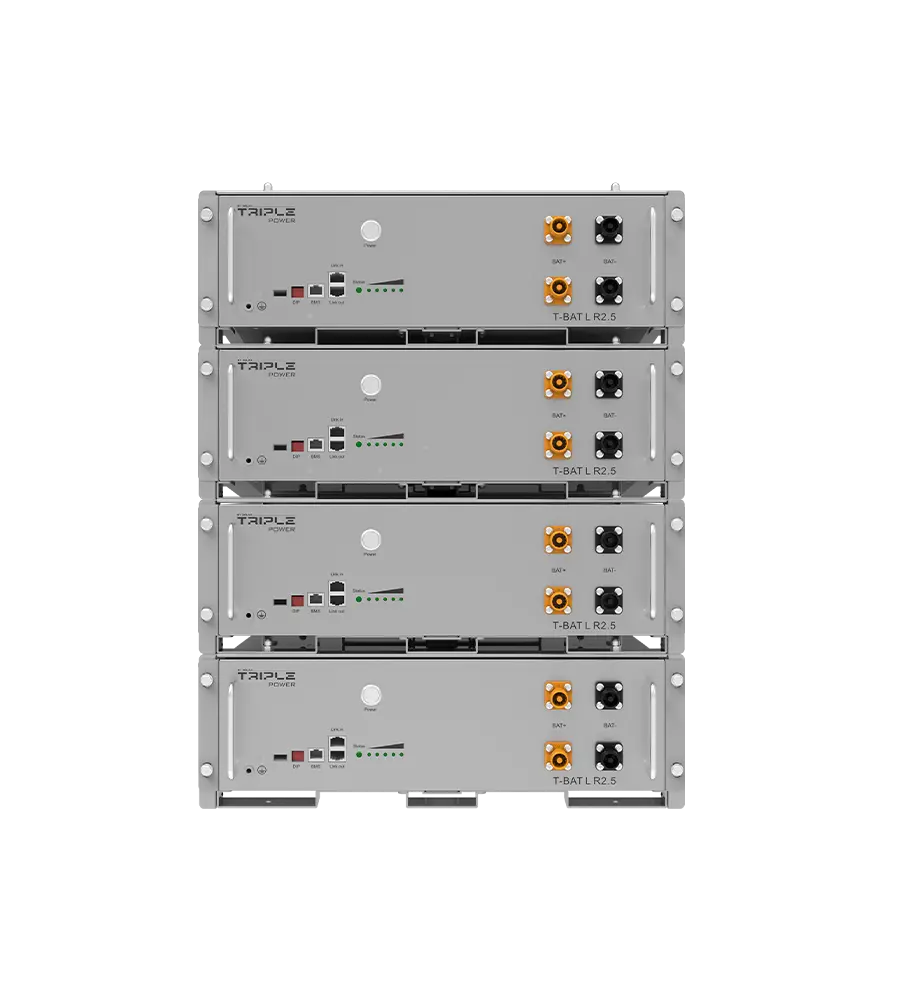

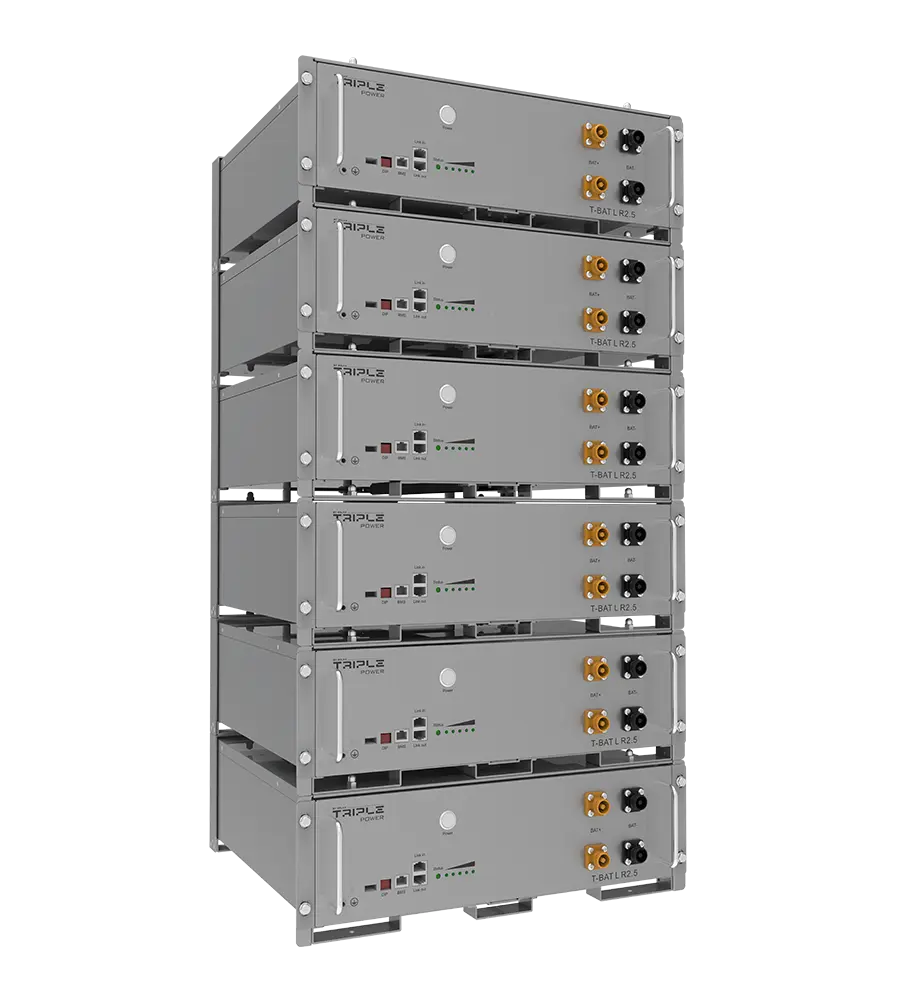

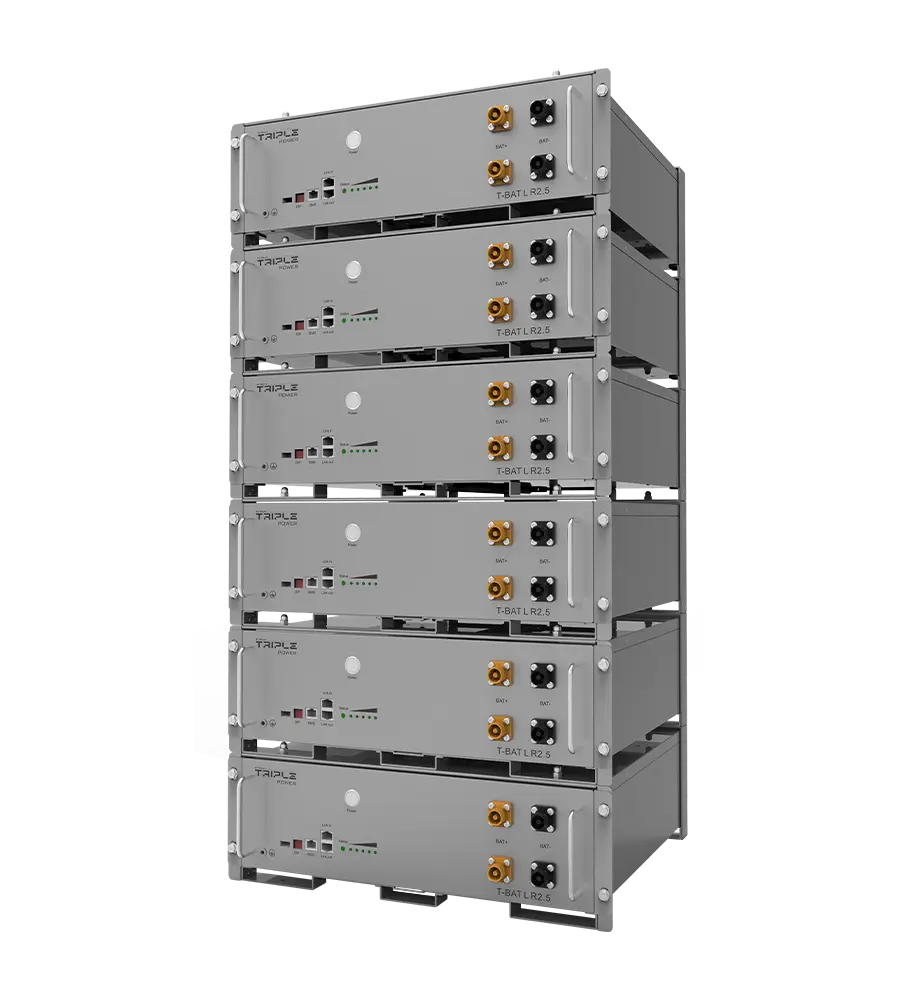

Η T-BAT-SYS-LV R36 από τη SolaX διαθέτει τεχνολογία μπαταριών LFP και προσφέρει ένα ευέλικτο εύρος χωρητικότητας μεταξύ 3,6 kWh και 58,8 kWh. Αυτή η μπαταρία συνδυάζεται τέλεια με τον μετατροπέα X1 HYBRID LV, καθιστώντας την μια ευέλικτη λύση για τις οικιακές ενεργειακές ανάγκες, ενώ είναι εύκολη στην εγκατάσταση και συντήρηση.

Δείτε το βίντεο
Λήψη Δεδομένων

Πλεονέκτημα Προϊόντος

Η SolaX T-BAT-SYS-LV R36 προσφέρει υψηλή απόδοση με πάνω από 6000 κύκλους, αποτελεσματική μεταφορά ενέργειας και εξαιρετική αξιοποίηση χωρητικότητας. Το έξυπνο σύστημα διαχείρισης της περιλαμβάνει απομακρυσμένη διάγνωση για εύκολη συντήρηση. Η ευέλικτη προσαρμοστικότητά της επιτρέπει γρήγορη τοποθέτηση σε τοίχο ή εγκατάσταση σε ντουλάπι και εύκολη επεκτασιμότητα για την κάλυψη των αυξανόμενων ενεργειακών αναγκών.

Επικοινωνήστε μαζί μας

Assured Reliability

LiFePO4 battery cell & high-performance processors
No toxic heavy metals or caustic materials
Soft start to protect BAT and INV from a sudden surge

High Performance

Long cycle life > 6000 times
High capacity utilization
Efficient energy transfer

Smart Management

Remote fault diagnosis, upgrade and maintenance

Flexible Adaptability

Wall quick bracket, or cabinet mounting optional
Easy to scale up

Παράμετροι Προϊόντος

T-BAT LR3.6
T-BAT LR7.2
T-BAT LR10.8
T-BAT LR14.4
T-BAT LR18.0
T-BAT LR21.6
T-BAT LR25.2
T-BAT LR28.8
T-BAT LR32.4
T-BAT LR36.0
T-BAT LR39.6
T-BAT LR43.2
T-BAT LR46.8
T-BAT LR50.4
T-BAT LR54.0
T-BAT LR57.6

T-BAT LR3.6
- SYSTEM DATA

  Number of modules 1 Module
  Nominal capacity 3.6 kWh
  Max.output current 50 A
  Peak discharge current
  60 A (60 s)
  100 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR3.6 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT L3.6 Weigh 33 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR7.2
- SYSTEM DATA

  Number of modules 2 Module
  Nominal capacity 7.3 kWh
  Max.output current 85 A
  Peak discharge current
  120 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR3.6 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT L3.6 Weigh 33 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR10.8
- SYSTEM DATA

  Number of modules 3 Modules
  Nominal capacity 11.0 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR3.6 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT L3.6 Weigh 33 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR14.4
- SYSTEM DATA

  Number of modules 4 Modules
  Nominal capacity 14.7 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR3.6 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT L3.6 Weigh 33 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR18.0
- SYSTEM DATA

  Number of modules 5 Modules
  Nominal capacity 18.4 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR3.6 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT L3.6 Weigh 33 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR21.6
- SYSTEM DATA

  Number of modules 6 Modules
  Nominal capacity 22.0 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR3.6 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT L3.6 Weigh 33 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR25.2
- SYSTEM DATA

  Number of modules 7 Modules
  Nominal capacity 25.7 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR3.6 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT L3.6 Weigh 33 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR28.8
- SYSTEM DATA

  Number of modules 8 Module
  Nominal capacity 29.4 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR3.6 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT L3.6 Weigh 33 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR32.4
- SYSTEM DATA

  Number of modules 9 Modules
  Nominal capacity 33.1 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR3.6 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT L3.6 Weigh 33 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR36.0
- SYSTEM DATA

  Number of modules 10 Modules
  Nominal capacity 36.8 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR3.6 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT L3.6 Weigh 33 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR39.6
- SYSTEM DATA

  Number of modules 11Modules
  Nominal capacity 40.4 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR3.6 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT L3.6 Weigh 33 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR43.2
- SYSTEM DATA

  Number of modules 12 Modules
  Nominal capacity 44.1 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR3.6 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT L3.6 Weigh 33 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR46.8
- SYSTEM DATA

  Number of modules 13 Modules
  Nominal capacity 47.8 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR3.6 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT L3.6 Weigh 33 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR50.4
- SYSTEM DATA

  Number of modules 14 Modules
  Nominal capacity 51.5 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR3.6 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT L3.6 Weigh 33 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR54.0
- SYSTEM DATA

  Number of modules 15 Modules
  Nominal capacity 55.2 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR3.6 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT L3.6 Weigh 33 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR57.6
- SYSTEM DATA

  Number of modules 16 Modules
  Nominal capacity 58.8 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR3.6 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT L3.6 Weigh 33 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
