Οικιακή ESS

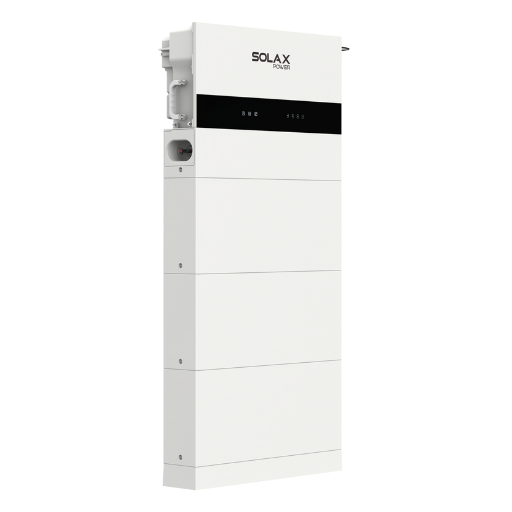

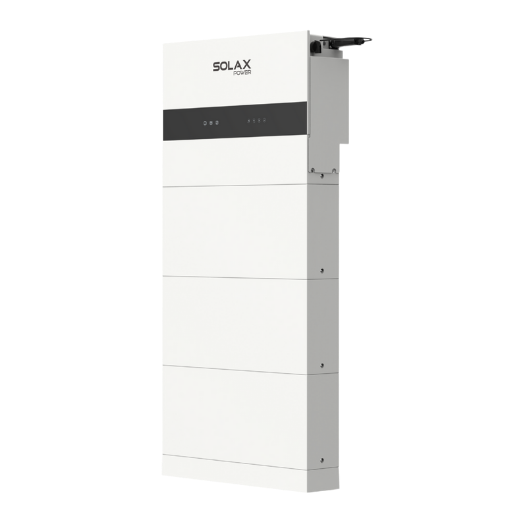

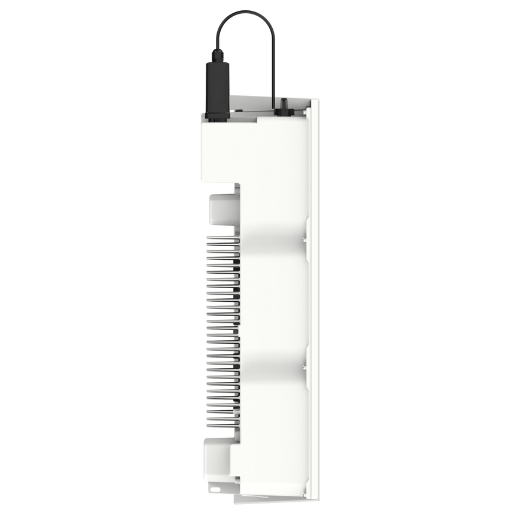

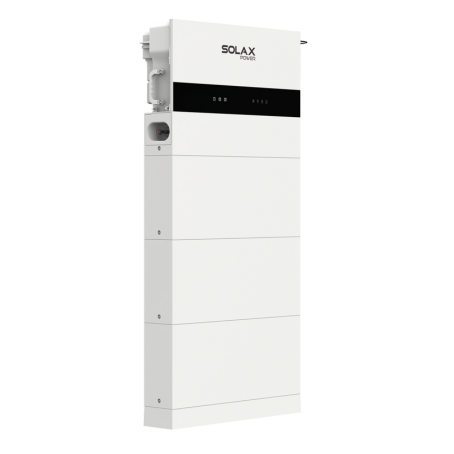

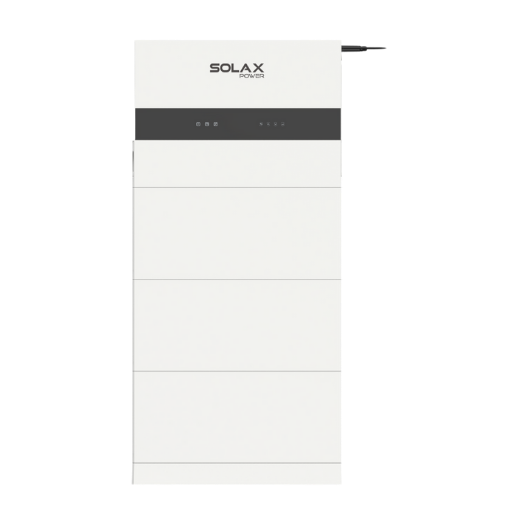

X3-IES-P
-
4kW / 5kW / 6kW / 8kW / 10kW / 12kW / 15kW
Ο μετατροπέας X3-IES-P έχει σχεδιαστεί για ευελιξία και απλότητα, διαθέτοντας μια συμπαγή, όλα-σε-ένα plug-and-play κατασκευή που βελτιστοποιεί την εγκατάσταση. Προσαρμόζεται εύκολα σε διάφορες εφαρμογές με υποστήριξη για αντλίες θερμότητας, φορτιστές EV και έξυπνες σκηνές
-
Δείτε το βίντεο
Πλεονέκτημα Προϊόντος
Το X3-IES-P προσφέρει 200% υπερμεγέθυνση εισόδου PV και παρέχει έως 20A ανά MPPT, μεγιστοποιώντας την ηλιακή συγκομιδή υπό οποιεσδήποτε συνθήκες. Η χαμηλή τάση εκκίνησης και η τεχνολογία παγκόσμιας παρακολούθησης MPP βελτιστοποιούν τη σύλληψη ενέργειας καθ' όλη τη διάρκεια της ημέρας.
Assured Reliability
IP66 protection degree
Type II SPD on AC&DC side
AFCI protection (optional)**
Unique battery heating tech and wide temperature tolerance
Up to 200% EPS output for 10s
UPS-level switchover time<10ms
Smart Management
Al ready, forecasting solar generation and home consumption for smart energy management strategy control*
VPP ready with a variety of compatibility (OpenADR, IEEE2030.5, FCAS, API)**
Micro-grid support for real-time balance in grid/off-grid
Wireless meter solution
Smart Schedule, Smart Scene, and 7*24h TOU
Global MPP scan for optimal energy harvest
High Performance
Max. 3 MPPTs for versatile application scenarios
200% oversizing and 200% PV input power
Max. 20A PV input per MPPT
Low startup voltage for higher energy harvest
Flexible Adaptability
All-in-one, plug-and-play design
Support smart scene functions (e.g., heat pump, EV charger)
Versatile installation for varied needs
Παράμετροι Προϊόντος
-
X3-IES-4K-P-
PV INPUT
Max. recommended PV array power
8 kWp
MPPT voltage range
110~950 V
Number of MPP. trackers / strings per MPPT
2/(1/1)
Max. input current per MPPT
20 A/20 A
-
AC INPUT & OUTPUT(ON-GRID)
Rated output power
4kW
Rated AC voltage
3 / N / PE, 220 / 380 V
3 / N / PE, 230 / 400 V
-
EPS(OFF-GRID) OUTPUT(WITH BATTERY)
Rated EPS output power
4 kVA
Peak EPS output power
2 times of rated power, 10s
Switchover time <10 ms
-
BATTERY MODEL
Battery type
Li-ion (LFP)
Ingress protection IP66
-
GENERAL
Dimensions (W x H x D)
717x405x209.5 mm
Cooling concept Nature cooling Net Weight 37 kg
-
-
X3-IES-5K-P
-
PV INPUT
Max. recommended PV array power
10 kWp
MPPT voltage range
110~950 V
Number of MPP. trackers / strings per MPPT
2/(1/1)
Max. input current per MPPT
20 A/20 A
-
AC INPUT & OUTPUT(ON-GRID)
Rated output power
5kW (AS4777 4999)
Rated AC voltage
3 / N / PE, 220 / 380 V
3 / N / PE, 230 / 400 V
-
EPS(OFF-GRID) OUTPUT(WITH BATTERY)
Rated EPS output power
5 kVA
Peak EPS output power
2 times of rated power, 10s
Switchover time <10 ms
-
BATTERY MODEL
Battery type
Li-ion (LFP)
Ingress protection IP66
-
GENERAL
Dimensions (W x H x D)
717x405x209.5 mm
Cooling concept Nature cooling Net Weight 37 kg
-
-
X3-IES-6K-P
-
PV INPUT
Max. recommended PV array power
12 kWp
MPPT voltage range
110~950 V
Number of MPP. trackers / strings per MPPT
2 / (1 / 1)
Max. input current per MPPT
20 A/20 A
-
AC INPUT & OUTPUT(ON-GRID)
Rated output power
6kW
Rated AC voltage
3 / N / PE, 220 / 380 V
3 / N / PE, 230 / 400 V
-
EPS(OFF-GRID) OUTPUT(WITH BATTERY)
Rated EPS output power
6 kVA
Peak EPS output power
2 times of rated power, 10s
Switchover time <10 ms
-
BATTERY MODEL
Battery type
Li-ion (LFP)
Ingress protection IP66
-
GENERAL
Dimensions (W x H x D)
717x405x209.5 mm
Cooling concept Nature cooling Net Weight 37 kg
-
-
X3-IES-8K-P
-
PV INPUT
Max. recommended PV array power
16 kWp
MPPT voltage range
110~950 V
Number of MPP. trackers / strings per MPPT
3 / (1 / 1 / 1)
Max. input current per MPPT
20 A / 20 A / 20 A
-
AC INPUT & OUTPUT(ON-GRID)
Rated output power
10 kW (AS4777 9999)
Rated AC voltage
3 / N / PE, 220 / 380 V
3 / N / PE, 230 / 400 V
-
EPS(OFF-GRID) OUTPUT(WITH BATTERY)
Rated EPS output power
10 kVA
Peak EPS output power
2 times of rated power, 10s
Switchover time <10 ms
-
BATTERY MODEL
Battery type
Li-ion (LFP)
Ingress protection IP66
-
GENERAL
Dimensions (W x H x D)
717x405x209.5 mm
Cooling concept Nature cooling Net Weight 37 kg
-
-
X3-IES-10K-P
-
PV INPUT
Max. recommended PV array power
20 kWp
MPPT voltage range
110~950 V
Number of MPP. trackers / strings per MPPT
3 / (1 / 1 / 1)
Max. input current per MPPT
20 A / 20 A / 20 A
-
AC INPUT & OUTPUT(ON-GRID)
Rated output power
10 kW (AS4777 9999)
Rated AC voltage
3 / N / PE, 220 / 380 V
3 / N / PE, 230 / 400 V
-
EPS(OFF-GRID) OUTPUT(WITH BATTERY)
Rated EPS output power
10 kVA
Peak EPS output power
2 times of rated power, 10s
Switchover time <10 ms
-
BATTERY MODEL
Battery type
Li-ion (LFP)
Ingress protection IP66
-
GENERAL
Dimensions (W x H x D)
717x405x209.5 mm
Cooling concept Nature cooling Net Weight 37 kg
-
-
X3-IES-12K-P
-
PV INPUT
Max. recommended PV array power
24 kWp
MPPT voltage range
110~950 V
Number of MPP. trackers / strings per MPPT
3 / (1 / 1 / 1)
Max. input current per MPPT
20 A / 20 A / 20 A
-
AC INPUT & OUTPUT(ON-GRID)
Rated output power
12 kW
Rated AC voltage
3 / N / PE, 220 / 380 V
3 / N / PE, 230 / 400 V
-
EPS(OFF-GRID) OUTPUT(WITH BATTERY)
Rated EPS output power
12 kVA
Peak EPS output power
2 times of rated power, 10s
Switchover time <10 ms
-
BATTERY MODEL
Battery type
Li-ion (LFP)
Ingress protection IP66
-
GENERAL
Dimensions (W x H x D)
717x405x209.5 mm
Cooling concept Nature cooling Net Weight 37 kg
-
-
X3-IES-15K-P
-
PV INPUT
Max. recommended PV array power
30 kWp
MPPT voltage range
110~950 V
Number of MPP. trackers / strings per MPPT
3 / (1 / 1 / 1)
Max. input current per MPPT
20 A / 20 A / 20 A
-
AC INPUT & OUTPUT(ON-GRID)
Rated output power
15 kW (AS14999)
Rated AC voltage
3 / N / PE, 220 / 380 V
3 / N / PE, 230 / 400 V
-
EPS(OFF-GRID) OUTPUT(WITH BATTERY)
Rated EPS output power
15 kVA
Peak EPS output power
2 times of rated power, 10s
Switchover time <10 ms
-
BATTERY MODEL
Battery type
Li-ion (LFP)
Ingress protection IP66
-
GENERAL
Dimensions (W x H x D)
717x405x209.5 mm
Cooling concept Nature cooling Net Weight 37 kg
-
